AG OFCAS 35 Air Compressor
Categories:
Product Description

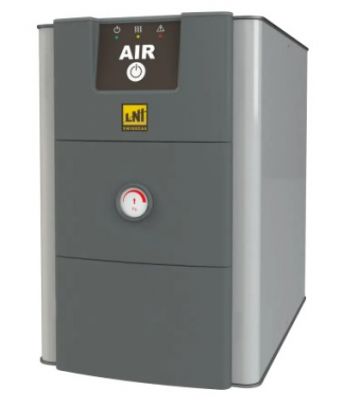

AG OFCAS 35
Air compressor
The high quality of the materials combined with cutting-edge technology of the compressor unit, ensure reliability, professionalism and economy and allows continuous use, unthinkable in traditional direct-drive oil-free compressors.
The AirGen OFCAS 35 is the ideal compressor to supply all Zero Air generators ZA FID and ZA Total or the high purity Nitrogen generator NG EOLO.
Technical specifications
| Model: AG OFCAS | 35 |
| General data | |
| Rated power (Max) | 0.75 kW |
| Internal tank capacity | 4 L |
| Dimensions | 27(W) x 44(D) x 41(H) cm |
| Net weight | 35 kg |
| Noise level | 58dB(A) at 1,5 m from front |
| Air Outlet | |
| Operation control | Electronic pressure control – Set point with hysteresys |
| Free Air Delivery | 35 l/min @ 7Bar |
| Working pressure (min; Max) | 6bar (87psi) / 8.5bar (123psi) |
| Dew point *1 | < -20°C (<-4°F) |
| Electrical data | |
| Supply rating | 100-115Vac (±10%) 50/60 Hz or 230Vac (±10%) 50/60 Hz |
| Connection type | IEC320-C13 |
| Nominal power | 750W |
| Fuse rating (5x20mm) | 10A (250Vac) |
| Connections | |
| Compressed Air outlet | 1/4” BSPP female + on/off ball valve |
| Condensate water drain | 1/4” BSPP female fitting |
| Operating/storage conditions | |
| Working Temperature | 5-40°C (41-104°F) |
| Storage Temperature | 1-50°C (34-122°F) |
| Humidity (max, non condensing) | 80% [5-40°C (41-104°F)] |
| IP rating | IP20 |
| Pollution degree rating | 2 (with no aromatic compounds) |
| Altitude | < 2000m |
*1 Atmospheric Dew-point (ADP)
SGD 0.00
In stock
