AG OFCAS 35 PLUS Air Compressor
Categories:
Product Description

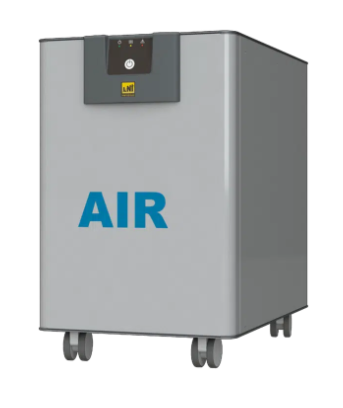

AG OFCAS 35 PLUS
Air compressor
The high quality of the materials combined with cutting-edge technology of the compressor unit, ensure reliability, professionalism and economy allowing continuous use, unthinkable in traditional direct-drive oil-free compressors.
The AirGen OFCAS 35 PLUS is the ideal compressor to supply all Zero Air generators ZA FID and ZA TOTAL or the high purity Nitrogen generator NG EOLO.
Technical specifications
| Model: AG OFCAS | 35 PLUS |
| General data | |
| Rated power (Max) | 0.75 kW |
| Internal tank capacity | 10 L |
| Dimensions (W x D x H) | 43 x 75 x 68 cm |
| Net weight | 90 kg |
| Noise level | 58dB(A) @ 1.5 m from front |
| Air Outlet | |
| Operation control | Electronic pressure control – Set point with hysteresis |
| Air Delivery (Max) | 35 l/min @ 7Bar |
| Dew point *1 | < -20°C (<-4°F) |
| Electrical data | |
| Supply rating |
100-115Vac (±10%) 50/60 Hz or 230Vac (±10%) 50/60 Hz |
| Connection type | IEC320-C14 |
| Nominal power | 750W |
| Fuse rating (5x20mm) | 10A (250Vac – T) |
| Connections | |
| Compressed Air outlet | 1/4” BSPP female fitting |
| Operating/storage conditions | |
| Working Temperature | 5-40°C (41-104°F) |
| Storage Temperature | 1-50°C (34-122°F) |
| Humidity (max, non condensing) | 80% [5-40°C (41-104°F)] |
| Heat value | 2560 |
| IP rating | IP20 |
| Pollution degree rating | 2 (with no aromatic compounds) |
| Altitude | < 2000m |
*1 Atmospheric Dew-point (ADP)
