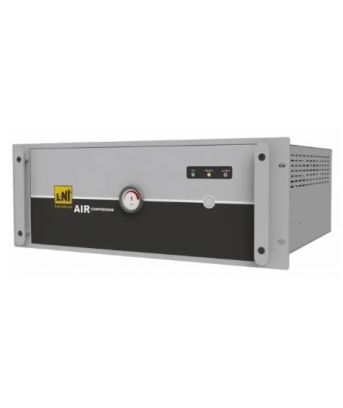

AG OFCAS RACK Air Compressor
Product Description
AG OFCAS RACK
Air Compressor
The high quality of the materials combined with cutting-edge technology of the compressor unit, ensure reliability, professionalism and economy and allows continuous use, unthinkable in traditional direct-drive oil-free compressors.
The AirGen OFCAS RACK is the ideal compressor to supply all Zero Air generators ZA FID and ZA Total or the high purity Nitrogen generator NG EOLO.
Technical specifications
| Model: AG OFCAS | 10 RACK | 40 RACK |
| General data | ||
| Rated power (Max) | 0.25 kW | 0.75 kW |
| Internal tank capacity | 2L | 4L |
| Dimensions | Standard 19” 4U rack (48 cm deep) | Standard 19” 6U rack (41 cm deep) |
| Net weight | 25 kg | 35 kg |
| Noise level | 55dB(A) @ 1,5 m from front | 65dB(A) @ 1,5 m from front |
| Air Outlet | ||
| Operation control | Electronic pressure control – Set point with hysteresis | |
| Air flow (Max) | 10 l/min @ 3Bar | 40 l/min @ 6bar |
| Working pressure (Max) | 7Bar (101.5psi) | 8bar (116psi) |
| Dew point *1 | < -10°C (< 14°F) | < – 20°C (< -4°F) |
| Electrical data | ||
| Nominal power | 250W | 750W |
| Supply rating | 230 Vac (±10%) 50/60 Hz | 100-115 Vac (±10%) 50/60 Hz or 230 Vac (±10%) 50/60 Hz |
| Connection type | IEC320-C14 | |
| Fuse (5x20mm) | 6.3A (250Vac – T) | 10A (250Vac – T) |
| Connections | ||
| Compressed Air outlet | 1/4” BSPP female fitting | |
| Condensate water drain | 1/8” BSPP female fitting | |
| Operating/storage conditions | ||
| Working Temperature | 5-40°C (41-104°F) | |
| Storage Temperature | 1-50°C (34-122°F) | |
| Humidity (max, non
condensing) |
80% [5-40°C (41-104°F)] | |
| IP rating | IP20 | |
| Pollution degree rating | 2 (with no aromatic compounds) | |
| Altitude | < 2000m | |
*1 Atmospheric Dew Point (ADP)
