Product Description
H2 SENSOR KIT-010-020

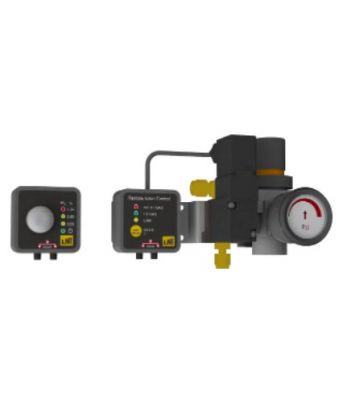

Environment H2 sensor kit
This H2-SENSOR Kit is a security system that constantly detects the amount of Hydrogen present in the working environment of the GC and blocks the Hydrogen generation if it detects an amount greater than the safety threshold.
The 6940.00.055 controller reads the percentage of Hydrogen measured by the sensor 6940.00.060 and, if the value exceeds the threshold alarm, the Controller deactivates the solenoid valve in the 6940.00.056 block.
The alarm can be signaled to a PC and to a remote device.
Technical specifications
| Models: 6940.00.050 |
| 6940.00.055 | |
| Power Supply Voltage | 12 VDC +/- 5% |
| Power Supply Current | 0.8 A use with OPT.H2.SENS.VB.V2 |
| Valve output | Open collector 12VDC/500mA |
| Ambient temperature | 5-35°C (41-95°F) |
| Ambient Humidity (max, non condensing) | 80% at 25°C (77°F) |
| IP rating | IP20 |
| 6940.00.056 | |
| Hydrogen Inlet pressure | 1 to 9 bar |
| Inert Inlet pressure | 1 to 10 bar |
| Pressure regulator | 1 to 9 bar |
| 6940.00.060 |
| Hydrogen Sensitivity Range | 0.01% to 1.00% by hydrogen volume (25% LEL, Lower Explosion Limit) |
| Accuracy | ± (5.0% of F.S. + 1000ppm) |
| Typical Response Time | less than 20 sec |
| Power Supply Voltage | From 9VDC to 28VDC |
| Communication port | RS-485 |
| Protocol | MODBUS-RTU |
| Calibration Interval | 1 year (suggested 180 days) |
| Hydrogen Sensor Technology | Dioxide semiconductor |
| Product Life Expectancy | 10 years |
| Body temperature range | -10 °C to 40 °C |
