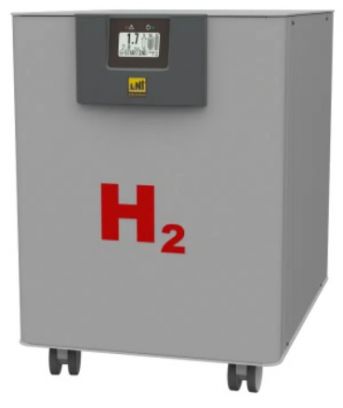

HG PRO 4000 Hydrogen Generator
Categories:
Product Description
HG PRO 4000
PEM Hydrogen generator
The HydroGen series HG PRO 4000 is able to generate up to 4000 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). The HG PRO includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG PRO 4000 is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
Technical specifications
| Model: HG PRO | 4000 | 4000 LN |
| General data | ||
| Electrolytic cell | PEM technology | |
| Drying system | PSA (Pressure Swing Adsorption) / TSA (Thermal Swing Adsorption) | |
| H2 purity | >99.99999%*1 Dew-point -75°C | >99.99999%*1 Dew-point -80 °C |
| Outlet pressure | 12 bars (174 psi) / 16 bars (232 psi) (optional) | |
| H2 flow-rate cc/min (Max) | 4000 | |
| Dimensions (W x D x H) | 44.5 x 66 x 61.5 cm | |
| Net weight (no water in tank) | 52 kg | 53 kg |
| N2 content | < 3 ppm | < 1ppm |
| Communication | ||
| RS-232 / USB / RS-485 | Standard | |
| Digital I/O | Standard | |
| LAN | Optional | |
| Software functions | ||
| Parallel mode | Ready on board | |
| Automatic tank refill | Standard | |
| Fill Hydride canister function | Standard | |
| Water | ||
| Quality Required | Deionized, ASTM II, <0.1uS | |
| Supply pressure (max) | 0 bar (0 psi), 0.5 bar (7.25 psi) | |
| Flow rate (max) | 0.25 l/h | |
| Internal tank capacity | 20 L | |
| Electrical data | ||
| Type of connection | IEC 320-C14 | |
| Power supply voltage | 240 Vac (±10%) 50/60 Hz | |
| Nominal power (Max) | 1450W | |
| Fuse rating (5x20mm) | 6.3A (250 Vac – T) | |
| Connections | ||
| Hydrogen outlet | 1/8” compression fitting | |
| Water | Quick release push-in fitting | |
| Operating/storage conditions | ||
| Working Temperature | 5-40°C (41-104°F)*2 | |
| Storage Temperature | 1-50°C (34-122°F) | |
| Humidity (max, non condensing) | 70% | |
| Noise | < 50dB(A) | |
| IP rating | IP20 | |
| Pollution degree rating | 2 (with no aromatic compounds) | |
| Altitude | < 2000m | |
*1 referred to O2, dew point atmospheric Dew-point (ADP)
*2 with temperature > 35°C (> 95°F) the H2 purity could be less
