HG RACK 2U BASIC Hydrogen Generator
Product Description

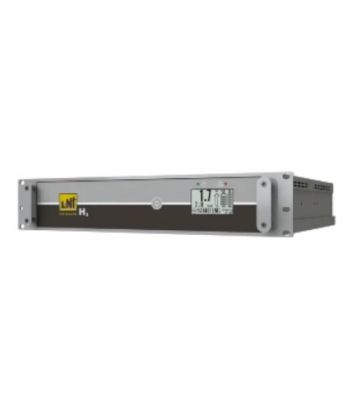

HG RACK 2U BASIC
PEM Rack 19 inch Hydrogen generator
The HydroGen series HG RACK 19” 2U BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG 2U 19 inch BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG 19 inch 2U BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
Technical specifications
Models: HG 2U BASIC | 100 | 160 | 250 | 350 | 600 |
General data | |||||
Electrolytic cell | PEM technology | ||||
Drying system | Static dryer | ||||
H2 purity | >99.9999% *1 | ||||
Outlet pressure | 10 bars (145 psi) | ||||
H2 flow-rate cc/min (Max) | 100 | 160 | 250 | 350 | 600 |
Dimensions | Standard 2U RACK (48 cm deep) | ||||
Net weight (no water in tank) | 15 kg | ||||
Communication | |||||
RS485/USB | Standard | ||||
LAN | Optional | ||||
Software functions | |||||
Parallel mode | Ready on board | ||||
Automatic tank refill | Standard | ||||
Water | |||||
Quality | Deionized, ASTM II, <0.1uS | ||||
Supply pressure (min, Max) | 0 bars (0 psi), 0.5 bar (7.25 psi) | ||||
Internal tank capacity | 0.3 l | ||||
Electrical data | |||||
Type of connection | IEC 320-C14 | ||||
Power supply voltage | 100-240 Vac (±10%) 50/60 Hz | ||||
Nominal power (Max) | 350W | 500W | |||
Fuse rating (5x 20 mm) | 4A (250VAC – T) | ||||
Connections | |||||
Hydrogen outlet | 1/8” compression fitting | ||||
Water (inlet, drain) | Quick release push-in fitting |
*1 Referred to O2 – DewPoint < -25°C (<-13°F), Atmospheric Dew Point (ADP)
