HG RACK 2U PRO Hydrogen Generator
Product Description

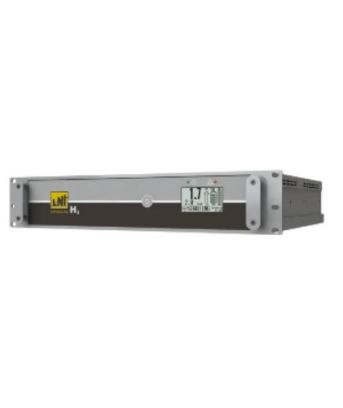

HG RACK 2U PRO
PEM Rack 19 inch Hydrogen generator
The HydroGen series HG RACK 19“ 2U PRO is able to generate up to 600cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI).
The HG RACK 19 inch 2U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HG RACK 19 inch 2U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety.
Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
Technical specifications
| Models: HG 2U PRO | 100 | 160 | 250 | 350 | 600 |
| General data | |||||
| Electrolytic cell | PEM technology | ||||
| Drying system | PSA (Pressure Swing Adsorption) | ||||
| H2 purity | >99.99999% 1 | ||||
| Outlet pressure | 12 bar (174 psi) / 16 bar (232 psi) (optional) | ||||
| H2 flow-rate cc/min (Max) | 100 | 160 | 250 | 350 | 600 |
| Dimensions | Standard 19 inch 2U RACK (48 cm deep) | ||||
| Net weight (no water in tank) | 16.5 kg | ||||
| Communication | |||||
| RS485/USB | Standard | ||||
| LAN | Optional | ||||
| Software functions | |||||
| Parallel mode | Ready on board | ||||
| Automatic tank refill | Standard | ||||
| Water | |||||
| Quality | Deionized, ASTM II, <0.1uS | ||||
| Supply pressure (min, Max) | 0 bars (0 psi), 0.5 bar (7.25 psi) | ||||
| Internal tank capacity | 0.3 l | ||||
| Electrical data | |||||
| Type of connection | IEC 320-C14 | ||||
| Power supply voltage |
100-240 Vac (±10%) 50/60 Hz |
||||
| Nominal power (Max) | 350W | 500W | |||
| Fuse rating (5x 20 mm) | 4A (250VAC -T) | ||||
| Connections | |||||
| Hydrogen outlet | 1/8” compression fitting | ||||
| Water (inlet, drain) | Quick release push-in fitting | ||||
¹Referred to O2 – DewPoint < -75°C (<-103°F), Atmospheric Dew Point (ADP)
