NG Castore DT Nitrogen Generator
Categories:
Product Description

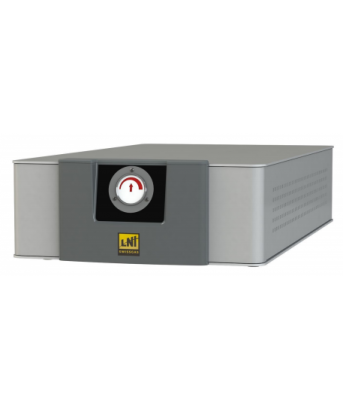

NG CASTORE DT
Membrane Nitrogen generator pneumatic controlled
The NitroGen series NG CASTORE DT are Membrane Nitrogen Generators. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen with a purity up to 99.5%.
The NG CASTORE DT has been developed to meet specific requirements in terms of gas, flow, purity and pressure in LC-MS applications. It can be also used for the evaporation of solvents in samples being analysed.
Technical specifications
|
Models: NG CASTORE DT |
10 | 35 |
| N2 outlet | ||
| Flow rate (Max) | 10 l/min | 35 l/min |
| Outlet pressure (Max) | Inlet pressure – 0.5bar (7.2 psi) | |
| Nitrogen purity
Inlet Pressure > 8 bar (116 psi) |
> 96% @ 10 l/min > 98% @ 5 l/min > 99.5% @ 3 l/min |
> 95% @ 35 l/min > 98% @ 15 l/min > 99.5% @ 9 l/min |
| Dew point *1 | < -60°C (-76°F) | |
| Air inlet | ||
| Air inlet requirement | ISO8573 – 1:2010 Class [1.3.1] | |
| Flow rate (Max) | 30 l/min | 105 l/min |
| Supply pressure (min; Max) | 5 bars (72.5 psi); 10bars (145 psi) | |
| Temperature (min; Max) | 1°C (34°F); 45°C (113°F) | |
| Communication | ||
| LED interface | Standard | |
| RS485 | Standard | |
| RS232 | For service | |
| General data | ||
| Supply rating | 100-240Vac (±10%) 47..63 Hz – 1A | |
| Connection type | IEC320-C14 | |
| Nominal power (Max) | 25W (30VA) | |
| Fuse rating (5x20mm) | 1A (250Vac – T) | |
| Net weight | < 25 kg | |
| Dimensions (W x D x H) | 36 x 65 *2 x 15 cm | |
| Connections | ||
| N2 outlet | ¼” BSPP female | |
| Inlet | ¼” BSPP female | |
| Operating/storage conditions | ||
| Temperature | 5-35°C (41-95°F) | |
| Humidity (max, non condensing) | 80% at 25°C (77°F) | |
| Noise | < 35dB(A) | |
| IP rating | IP20 | |
| Pollution degree rating | 2 (with no aromatic compounds) | |
| Altitude | < 2000m | |
*1 Atmospheric Dew Point (ADP)
*2 D= 710 mm with external filters
