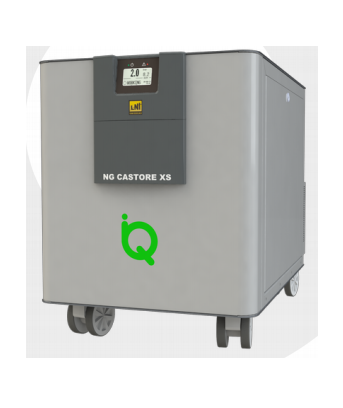

NG Castore XS iQ Nitrogen Generator
Product Description
NG CASTORE XS iQ
Membrane Nitrogen generator with integrated direct drive Scroll compressor.
Electronic controlled The NitroGen series NG CASTORE XS iQ are Membrane Nitrogen Generators. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 36l/min with a purity up to 99.9%. This NG series is equipped with a scroll built-in oil less compressor with inverter technology. The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency. The CASTORE iQ has been developed to meet specific requirements in term of gas, flow, purity and pressure in LC-MS applications. It can be used for the evaporation of solvents in samples being analysed.
Technical specifications
| Models: NG CASTORE XS iQ | 18 | 24 | 36 | |||
| 6920.80.18.1 | 6920.80.18 | 6920.80.24.1 | 6920.80.24 | 6920.80.36.1 | 6920.80.36 | |
| N2 outlet | ||||||
| Flow rate (Max) | 18 l/min | 24 l/min | 36 l/min | |||
| Outlet pressure (Max) | 8 Bar (115 psi) | |||||
| Nitrogen purity *1 | LCMS grade (up to 99.9%) | |||||
| Dew point *2 | < -60°C (<-76°F) | |||||
| Communication | ||||||
| LCD with touch screen | Standard | |||||
| RS485 | Standard | |||||
| RS232 | Standard | |||||
| General data | ||||||
| Power supply voltage (min-Max) | 115-240 Vac (±10%) 50/60 Hz | 220-240 Vac (±10%) 50/60 Hz | 115-240 Vac (±10%) 50/60 Hz | 220-240 Vac (±10%) 50/60 Hz | 115-240 Vac (±10%) 50/60 Hz | 220-240 Vac (±10%) 50/60 Hz |
| Connection type | IEC C20 | |||||
| Rated power (max) | 1.2 kW | 1.3 kW | 1.4 kW | 1.5 kW | 1.8 kW | |
| Net weight | 145 kg | |||||
| Noise level | < 48dB(A) | < 50dB(A) | ||||
| Heat value (BTU) | 4100 | 4440 | 5130 | |||
| Dimensions (W x D x H) | 51 x 85 x 69 cm | |||||
| Connections | ||||||
| N2 outlet port | ¼” BSPP female | |||||
| Drain port | ¼” BSPP female | |||||
| Operating/storage conditions | ||||||
| Temperature | 5-35°C (41-95°F) | |||||
| Humidity (max, non condensing) | 80% [5-35°C (41-95°F)] | |||||
| IP rating | IP20 | |||||
| Pollution degree rating | 2 (with no aromatic compounds) | |||||
*1 The purity refers to the residual oxygen, depends on flow and working pressure
*2 Atmospheric Dew Point (ADP)
