NGA CASTORE XL iQ SCIEX 7500 Nitrogen Generator
Product Description

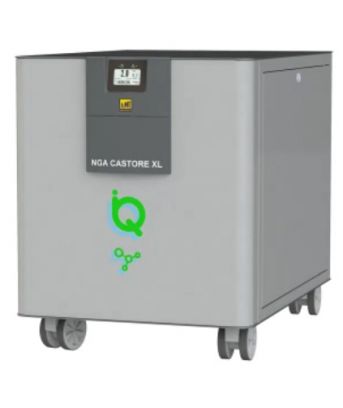

NGA CASTORE XL iQ SCIEX 7500
Membrane Nitrogen generator with integrated direct drive Scroll compressor. Electronic controlled.
NGA CASTORE XL iQ SCIEX 7500 is a Nitrogen Generator with Membrane technology.
It is engineered to transform standard compressed air into a supply of Nitrogen up to 32 L/min and with two additional outlets for dry and clean air. All of these three outlets have its own internal flow/pressure regulator for an appropriate adjustment to guarantee safety and precision.
The CASTORE XL iQ SCIEX 7500 with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure for SCIEX triple quad 7500.
A special carbon filter is used to remove VOC.
It can be used for LC-MS and the evaporation of solvents in samples being analysed.
The new iQ generators are equipped with an innovative direct drive motor-scroll compressor system (oil less) with inverter technology.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
Technical specifications
Models: NGA CASTORE XL iQ | SCIEX 7500 | |
6920.70.44 | 6920.70.44.1 | |
N2 outlet | ||
Flow rate (Max) | 32 L/min | |
Outlet pressure | 4.5 bar (65 psi) | |
N2 purity | LCMS grade (up to 99.9%) | |
Dew point *1 | < -60°C (<-76°F) | |
Dry Air outlet 1 (Gas 1/ Gas 2 / Bath gas) | ||
Flow rate (Max) | 26 l/min | |
Outlet pressure (Max) | 7.25 Bar (105 psi) | |
Dew point *1 | < -40°C (<-40°F) | |
Dry Air outlet 2 | ||
Flow rate (Max) | 25 l/min | |
Outlet pressure (Max) | 7.25 Bar (105 psi) | |
Dew point *1 | < -40°C (<-40°F) | |
Communication | ||
LCD with touch screen | Standard | |
RS485 | Standard | |
RS232 | For service | |
WiFi | Optional | |
General data | ||
Power supply voltage (min..Max) | 220-240 Vac (±10%) 50/60 HZ | 115-240 Vac (±10%) 50/60 HZ |
Connection type | IEC C20 | |
Rated power | 1.9 kW | 1.7 kW |
Net weight | 180 kg | 190 kg |
Noise level | < 50 dB | |
Heat value (BTU) | 6500 | 5800 |
Dimensions (W x D x H) | 59 x 92 x 73 cm | |
Connections | ||
N2 outlet port | ¼” SWAGELOK compatible | |
Dry Air outlet port | ¼” SWAGELOK compatible | |
Drain port | ¼” BSPP female | |
Operating/storage conditions | ||
Temperature | 5-35°C (41-95°F) *2 | |
Humidity (max, non condensing) | 80% [5-35°C (41-95°F)] | |
Altitude | < 2000 m | |
Pollution degree rating | 2 (with no aromatic compounds) | |
IP rating | IP20 |
