NGA CASTORE XL iQ SCIEX Nitrogen Generator
Product Description

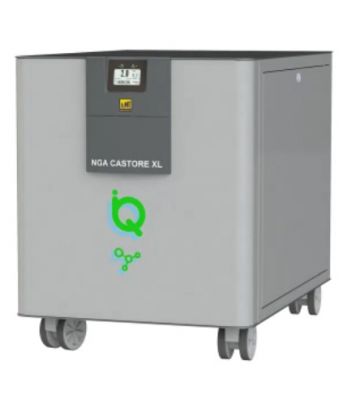

NGA CASTORE XL iQ SCIEX
Membrane Nitrogen generator with iQ technology for SCIEX applications.
It is engineered to transform standard compressed air into a supply of Nitrogen up to 20 L/min with a purity up to 99.95% and with two additional outlets for dry and clean air. All of these three outlets have its own internal flow/pressure regulator for an appropriate adjustment to guarantee safety and precision.
The CASTORE XL iQ SCIEX with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure for SCIEX applications. A special carbon filter is used to remove VOC.
It can be used for LC-MS and the evaporation of solvents in samples being analysed.
The new iQ generators are equipped with an innovative direct drive motor-scroll compressor system (oil less) with inverter technology.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
Technical specifications
Models: NGA CASTORE XL iQ | SCIEX | |
6920.70.43 | 6920.70.43.1 | |
N2 outlet | ||
Flow rate (Max) | 20 L/min | |
Outlet pressure | 8 bar (116 psi) | |
N2 purity | LCMS grade (up to 99.9%) | |
Dew point *1 | < -60°C (<-76°F) | |
Nitrogen for collision cell *2 | 200 cc/min @ 99.9999% *3 with option 6920.71.90 | |
Dry Air outlet 1 | ||
Flow rate (Max) | 30 l/min | |
Outlet pressure (Max) | 7 Bar (101 psi) | |
Dew point *1 | < -40°C (<-40°F) | |
Dry Air outlet 2 | ||
Flow rate (Max) | 30 l/min | |
Outlet pressure (Max) | 4 Bar (58 psi) | |
Dew point *1 | < -40°C (<-40°F) | |
Communication | ||
LCD with touch screen | Standard | |
RS485 | Standard | |
RS232 | For service | |
WiFi | Optional | |
General data | ||
Power supply voltage (min-Max) | 220-240 Vac (±10) 50/60 Hz | 115-240 Vac (±10%) 50/60 Hz |
Connection type | IEC C20 | |
Rated power | 1.9 kW | 1.7 kW |
Net weight | 180 kg | 190 kg |
Noise level | < 50 dB | |
Heat value (BTU) | 6500 | 5800 |
Dimensions (W x D x H) | 59 x 92 x 73 cm | |
Connections | ||
N2 outlet port | ¼” SWAGELOK compatible | |
Dry Air outlet port | ¼” SWAGELOK compatible | |
Drain port | ¼” BSPP female | |
Operating/storage conditions | ||
Temperature | 5-35°C (41-95°F) *4 | |
Humidity (max, non condensing) | 80% [5-35°C (41-95°F)] | |
Altitude | < 2000 m | |
Pollution degree rating | 2 (with no aromatic compounds) | |
IP rating | IP20 |
