Sonoplus mini20

Product Description

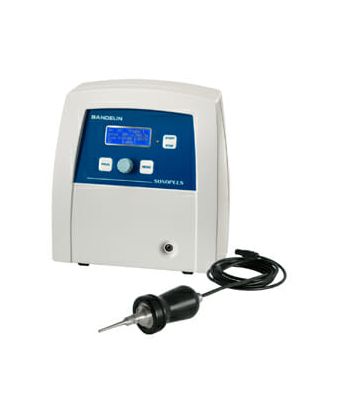

mini20

Ready-to-operate for volumes from 0,5ml to 0,25 ml consisting of HF generator GM mini20, ultrasonic converter UW mini20 and microtip MS 2.5, diameter 2.5 mm.

Max. 20 WeffHF output.

For more informations visit our page about the ultrasonic homogenizers in laboratory use or check our laboratory catalogue.

HF generator   GM mini20
Dimensions mm 250 × 256 × 154
Weight kg 2,0
Mains supply   230 V~, 50/60 Hz (optionally 115 V~, 50/60 Hz from 10/2008 available)
Converter   UW mini20
Dimensions mm Ø ca 50 × 160
Weight g 270
Available titanium probes   Ø mm 1,5 or 2,5

Suitable Sonotrodes

    MS 1.5 MS 2.0 MS 2.5
code no.   3639 3654 3652
diameter  mm 1,5 2 2,5
length* approx.   mm 64 59 55
amplitude µm 65 70 72
Sonication volume ml 0,1–10 0,25–20 0,5–25
vessel dia. (minimum) mm 4 6 6

Probe extension

For enlarging the operating depth in deep vessels. It is mounted between standard or booster horn and flat tip.

VS 20 SONOPULS mini20

SGD 0.00
In stock
- +
