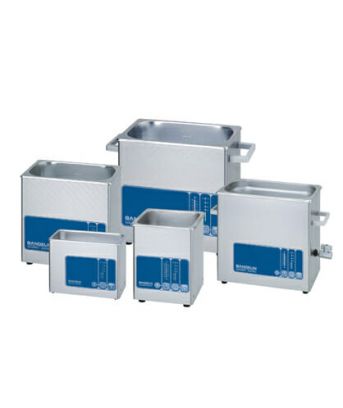

Sonorex Ultrasonic Bath

Product Description

Selection of the suitable SONOREX SUPER depends on the sizes and numbers of objects to be cleaned and of the sample vessels to be sonicated. Different sizes of ultrasonic baths starting from 0.9 to 58.0 litres are available for various applications.

Features:

PZT-large area oscillating systems
HF-Frequency 35 kHz
Timer 1 - 15 minutes and continous operation
H-types with built-in heating, 30 - 80 °C (86 to 176 °F) thermostatically adjustable, RK 31 H fixed at 65 °C/149 °F
Oscillating tank of hard chromium stainless steel at RK 102 H
Housing of stainless steel - drip proof
Drain cock included for easy emptying (from RK 100 SH upward )
Mains connection 230 V~ (±10 %), on request 115 V~ (±10 %), 50/60 Hz
SONOREX SUPER units are CE marked.

Units of the SONOREX SUPER CH from 45 to 90 litres capacity range have a very long life due to the extraordinarily high solidity of the tank made of welded 2 mm titanium stabilized stainless steel (AISI 316L).

Internal tank dimensions (l × w × d)	Capacity	Type	Code no.	Drain ball valve	Ultrasonic peak power*	Ultrasonic nominal power	Heating power	Current consumption	External dimensions (l × w × h)
mm	l				W	W	W	A	mm
190 × 85 × 60	0.9	RK 31	329	-	160	40	-	0.2	205 × 100 × 180
190 × 85 × 60	0.9	RK 31 H	7523	-	160	40	70	0.5	205 × 100 × 180
150 × 140 × 100	1.8	RK 52	311	-	240	60	-	0.3	175 × 165 × 225
150 × 140 × 100	1.8	RK 52 H	164	-	240	60	140	0.9	175 × 165 × 225
240 × 140 × 100	3.0	RK 100	301	-	320	80	-	0.4	260 ×160 × 250
240 × 140 × 100	3.0	RK 100 H	312	-	320	80	140	1.0	260 ×160 × 250
240 × 140 × 100	3.0	RK 102 H	303	G 1/4	480	120	140	1.2	260 ×160 × 250
240 × 140 × 150	4.0	RK 103 H	326	G 1/4	560	140	200	1.5	260 × 160 × 310
ø 240 × 130	5.6	RK 106	306	G 1/4	480	120	-	0.6	ø 265 × 270
500 × 140 × 100	6.0	RK 156	305	G 1/4	640	160	-	0.7	530 × 165 × 245
500 × 140 × 150	9.0	RK 156 BH	646	G 1/4	860	215	600	3.6	530 × 165 × 300
1000 × 200 × 200	39.0	RK 170 H	7506	G 1/2	1520	380	1600	8.7	1050 × 250 × 385
300 × 150 × 150	5.5	RK 255	3066	G 1/4	640	160	-	0.7	325 × 175 × 295
300 × 150 × 150	5.5	RK 255 H	316	G 1/4	640	160	280	2.0	325 × 175 × 295
300 × 240 × 150	9.7	RK 510	327	G 1/2	640	160	-	0.7	325 × 265 × 305
300 × 240 × 150	9.7	RK 510 H	321	G 1/2	640	160	400	2.5	325 × 265 × 305
300 × 240 × 200	13.0	RK 512 H	795	G 1/2	860	215	400	2.7	325 × 265 × 350
325 × 300 × 150	13.5	RK 514	277	G 1/2	860	215	-	1.0	355 × 325 × 305
325 × 300 × 150	13.5	RK 514 H	207	G 1/2	860	215	600	3.6	355 × 325 × 305
325 × 300 × 200	18.7	RK 514 BH	263	G 1/2	860	215	600	3.6	355 × 325 × 385
500 × 300 × 200	28.0	RK 1028	322	G 1/2	1200	300	-	1.4	535 × 325 × 400
500 × 300 × 200	28.0	RK 1028 H	324	G 1/2	1200	300	1300	7.0	535 × 325 × 400
500 × 300 × 300	45.0	RK 1028 C	661	G 1/2	2000	500	-	2.2	540 × 340 × 500
500 × 300 × 300	45.0	RK 1028 CH	143	G 1/2	1200	300	1450	7.7	540 × 340 × 500
ø 500 × 195	39.5	RK 1040	319	G 1/2	1520	380	-	1.7	ø 540 × 500
600 × 500 × 200	58.0	RK 1050	323	G 1/2	2400	600	-	2.7	640 × 540 × 425
600 × 500 × 300	90.0	RK 1050 CH	184	G 1/2	2400	600	1950	11.1	640 × 540 × 530
